Water, Heat, and Gas Meters,
Water meter MWN Nubis
Główne cechy:
- cicha praca
- tworzywo ABS
- łożyska kulkowe
- IPX4
- maksymalna temperatura pracy 40°C
- możliwość instalacji na suficie
- 5 lat gwarancji
- możliwość zainstalowania zaworu zwrotnego (ZZ)
Толгой зураг

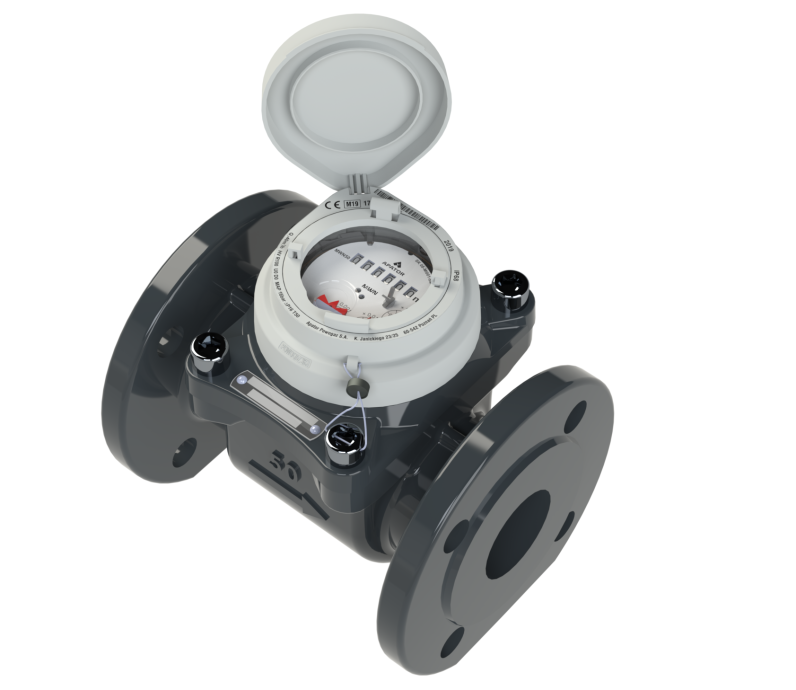

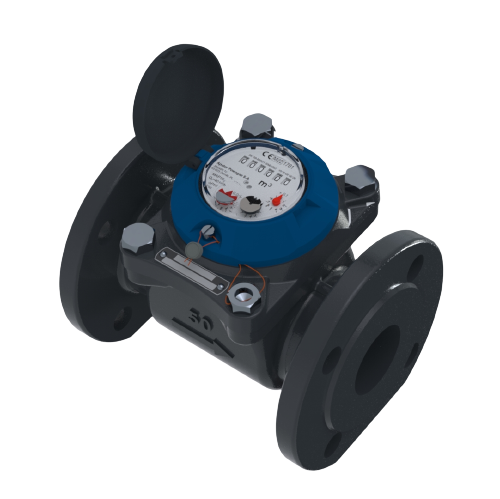

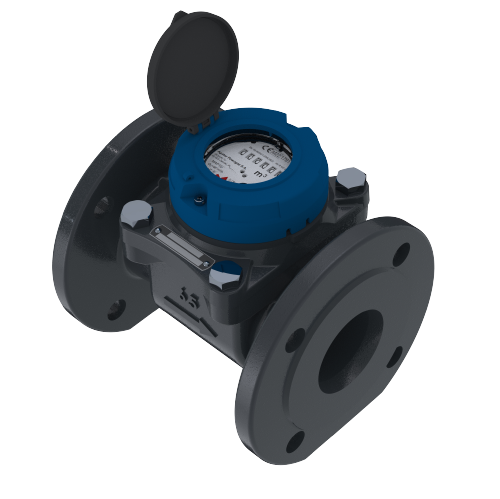

Water meter MWN Nubis
MWN Nubis, MWN 130 Nubis; -NKOP
Propeller water meter
- Polish MWN water meter
- Standard water meters (Ti/IR) are adapted for optical or inductive reading
- Possibility of remote readings using a reed switch, optoelectronic transmitter or communication modules
- Resistance to external magnetic field, in accordance with EN 14154-3, EN-ISO 4064-2
- Very good anti-corrosion and mechanical properties of the paint coating
- Adaptation for mounting communication modules: radio, M-Bus, pulse and GSM (does not apply to the version with the possibility of mounting an NK and/or NO transmitter)
| Type**** | Q3 [m3/h] | DN [mm] | Length [mm] | Connection |
|
Cold water meters
|
|
|
|
|
| MWN 40-XX* Nubis | 25 | 40 | 200 | flange*** |
| MWN 50-XX* Nubis | 40 | 50 | 200 | flange*** |

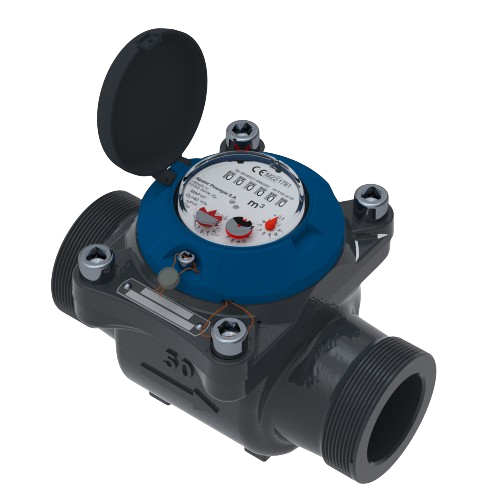

| MWN 50-G-XX* Nubis | 40 | 50 | 200 | G2½ |
| MWN 65-XX* Nubis | 63 | 65 | 200 | flange*** |
| MWN 80-XX* Nubis | 100 | 80 | 225/200** | flange*** |
| MWN 100-XX* Nubis | 160 | 100 | 250 | flange*** |
| MWN 125-XX* Nubis | 250 | 125 | 250 | flange*** |
| MWN 150-XX* Nubis | 400 | 150 | 300 | flange*** |
| MWN 200-XX* Nubis | 630 | 200 | 350 | flange*** |
| MWN 250-XX* Nubis | 1000 | 250 | 450 | flange*** |
| MWN 300-XX* Nubis | 1600 | 300 | 500 | flange*** |
| MWN 400-XX* Nubis | 1000 (Qn) | 400 | 600 | flange*** |
| MWN 500-XX* Nubis | 5000 (Qn) | 500 | 800 | flange*** |
|

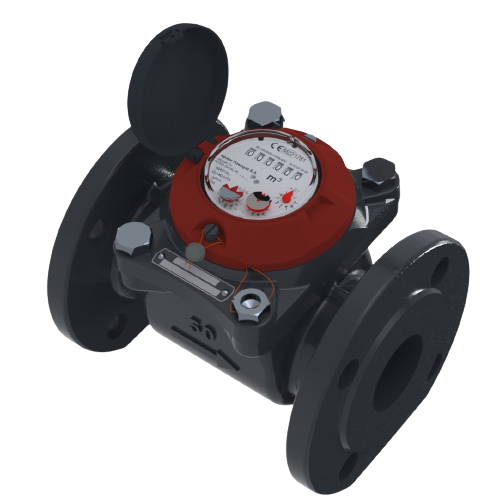

Hot water meters
|
|
|
|
|
| MWN130 40-XX* Nubis | 25 | 40 | 200 | flange*** |
| MWN130 50-XX* Nubis | 25 | 50 | 200 | flange*** |
| MWN130 50-G-XX* Nubis | 25 | 50 | 200 | G2½ |
| MWN130 65-XX* Nubis | 40 | 65 | 200 | flange*** |
| MWN130 80-XX* Nubis | 63 | 80 | 200**/225 | flange*** |
| MWN130 100-XX* Nubis | 100 | 100 | 250 | flange*** |
| MWN130 125-XX* Nubis | 160 | 125 | 250 | flange*** |
| MWN130 150-XX* Nubis | 250 | 150 | 300 | flange*** |
| MWN130 200-XX* Nubis | 400 | 200 | 350 | flange*** |
| MWN130 250-XX* Nubis | 630 | 250 | 450 | flange*** |
| MWN130 300-XX* Nubis | 1000 | 300 | 500 | flange*** |
