Water, Heat, and Gas Meters,
Single-jet dry water
Główne cechy:
- cicha praca
- tworzywo ABS
- łożyska kulkowe
- IPX4
- maksymalna temperatura pracy 40°C
- możliwość instalacji na suficie
- 5 lat gwarancji
- możliwość zainstalowania zaworu zwrotnego (ZZ)
Толгой зураг
Single-jet dry water
.jpg)
JS Smart+ (up to R100)

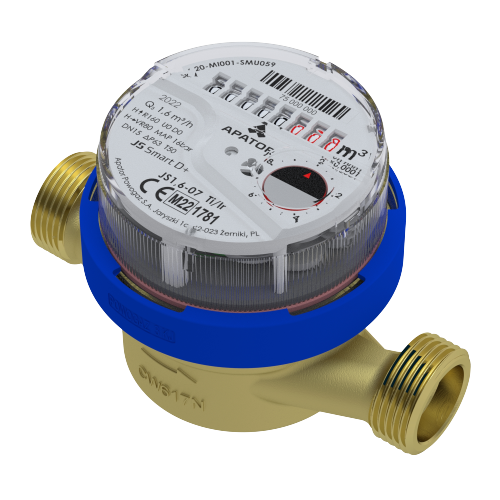

Single-jet dry water meters (DN15-20)
- Remote readings – water meter adapted to the assembly of the RF frontend for the communication in standards like Wireless M-Bus or pulse communication without interference into the water meter both as during the first installation and as the operation
- Metrological properties – fulfilment of newest metrological requirements MID
- Protection against mechanical external interference – by the strengthened construction of the counting mechanism housing
| Type* | R | Q3 [m3/h] | DN [mm] | Length [mm] | Connection |
|
Cold water meters
|
|||||
| JS 1,6-02 Smart+ | R100 | 1,6 | 15 | 110 | G¾ |
| JS 1,6-03 Smart+ | R100 | 1,6 | 15 | 110 | G¾ |
| JS 2,5-02 Smart+ | R100 | 2,5 | 15 | 110 | G¾ |
| JS 2,5-03 Smart+ | R100 | 2,5 | 15 | 110 | G¾ |
| JS 2,5-G1-02 Smart+ | R100 | 2,5 | 20 | 130 | G1 |
| JS 4-02 Smart+ | R100 | 4 | 20 | 130 | G1 |
|

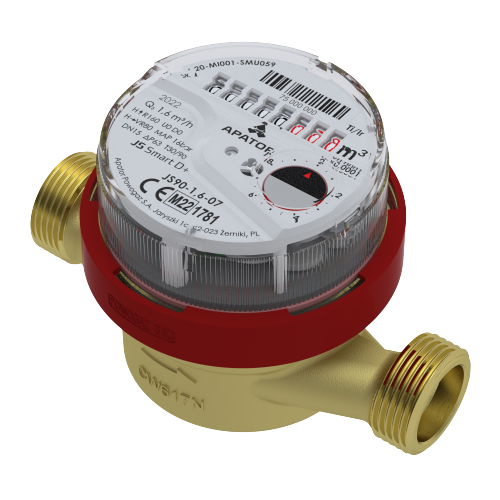

Hot water meters
|
|||||
| JS90 1,6-02 Smart+ | R100 | 1,6 | 15 | 110 | G¾ |
| JS90 1,6-03 Smart+ | R80 | 1,6 | 15 | 110 | G¾ |
| JS90 2,5-02 Smart+ | R100 | 2,5 | 15 | 110 | G¾ |
| JS90 2,5-03 Smart+ | R80 | 2,5 | 15 | 110 | G¾ |
| JS90 2,5-G1-02 Smart+ | R100 | 2,5 | 20 | 130 | G1 |
| JS90 4-02 Smart+ | R100 | 4 | 20 | 130 | G1 |
