Ultrasonic water meters

Ultrimis (DN15-50)

Ultrasonic water meters

High-quality Ultrimis ultrasonic water meters

Many patented design and technological features
The lightest and smallest ultrasonic water meter available to our customers
None of the materials in contact with water used for the construction of this meter contain heavy metals

Our ultrasonic water meters measure the flow and volume of water up to a max. temperature of 50°C or 70°C using a closed-loop system, with the full flow rates up to a max. pressure of 16 bar (PN16). This is important, especially when precision measurement of water consumption and the application of modern communication technologies are required, including NFC and radio reading systems. The water meters feature an e-display (IP68); may be installed in any orientation (H, V, H/V) and do not require the use of U0D0 straight sections, filters or check valves.

Specification	Temp. class			Q3 [m3/h]	DN [mm]	Lenght [mm]	Weight [kg]
Water meters for cold and hot water (UL 2,5 and UL 4)

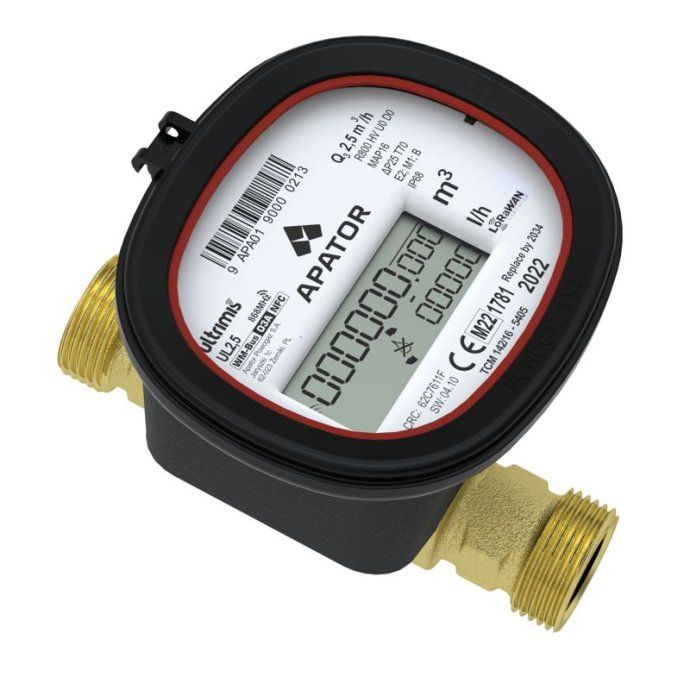

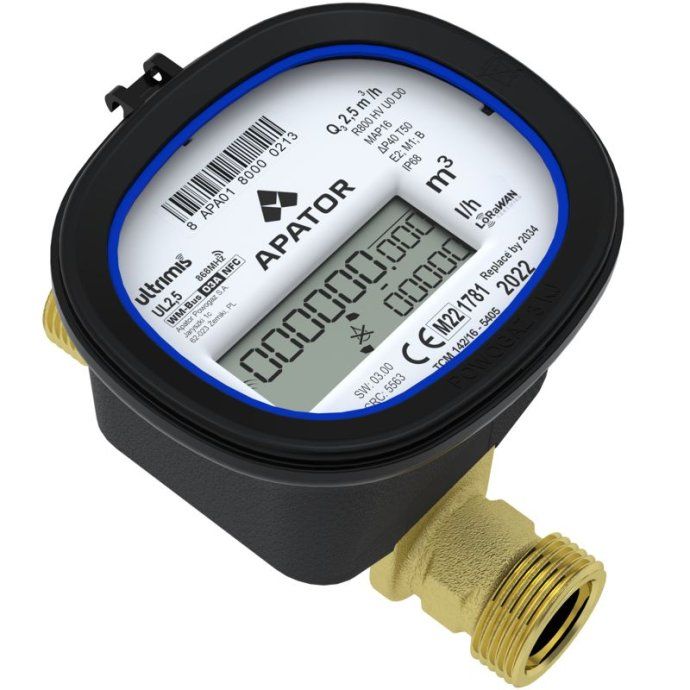

UL 2,5 Ultrimis	T50, T70	T50	up to R800	2,5	15	80;110;115;165	0,48 - 0,6

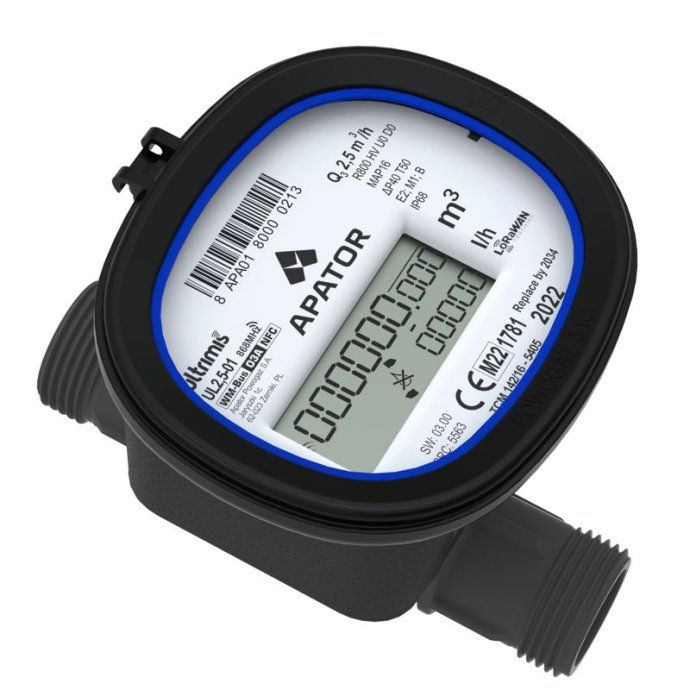

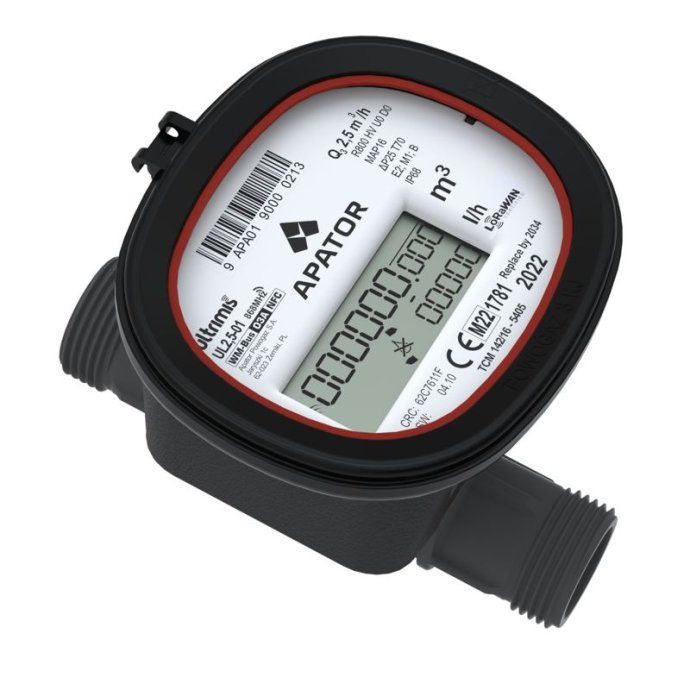

UL 2,5-01 Ultrimis	T50, T70	T50	up to R800	2,5	15	80; 110	0,29 - 0,31
UL 4 Ultrimis	T50, T70	T50	up to R800	4	20	105; 115; 130; 190	0,61 - 0,77
UL 4-0,1 Ultrimis	T50, T70	T50	up to R800	4	20	105; 130	0,33; 0,34
UL 6,3 Ultrimis		T50	up to R800	6,3	25	165; 260	1,05; 1,39
UL 10 Ultrimis		T50	up to R800	10	32	260	1,68
UL 16 Ultrimis		T50	up to R800	16	40	300	2,15
UL 25 Ultrimis		T50	R500	25	50	200; 270; 300	6,29; 6,75; 6,95
